The HSM V-Press 825 is especially unique baler with its very low height. Thanks to its powerful motor, its ergonomic design and its sophisticated and innovative technology. Bale strapping is done with polyester tape. V Press 825 is more suitable for operating where the less height is available. Its operations is suitable for logistics companies, recycling companies, mid-size super markets.

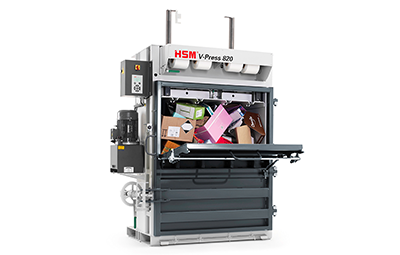

The V press 820 is equipped with hand wheel door lock which make it easy to handle opening and closing of the doors. It has quick and easy installation due to crossed cylinders. Special feature of Auto start of the pressing process after closing the door. There is convenient membrane keypad with text display, which shows the current status of the machine. It is equipped with HSM TCS (Torsion Control System) for monitoring press ram movement. Suitable for cardboard as well as film.
| Pressing power | 250 kN |
| Specific pressing power | 26 N/cm² |
| Driving power | 4 kW |
| Voltage / Frequency | 400 V / 50 Hz |
| Cycle time when idling | 39 s |
| Loading aperture width x height | 1195 x 530 mm |
| Bale length from to x Bale width x Bale height | 1200 x 780 x 700 mm |
| Hourly Output in Balers | 2-5 bales Approx |
| Bale weight | 280 Kg Approx |
| Machine Width x Depth x Height | 1700 x 1046 x 2370 mm |
| Machine Weight | 1063 Kgs |
| Method of strapping | Vertical |
| Number of strappings | 4 |
| Type of consumables | Strapping tape |
Easy to handle thanks to counter-rotating thread for quick opening and closing.
(Torsion Control System) for monitoring press ram movement
Automatic start of the pressing process after closing the door
Convenient membrane keypad with text display, which shows the current status of the machine
Suitable for cardboard as well as film
Content to fill the press, the upper half of the doors is folded down.

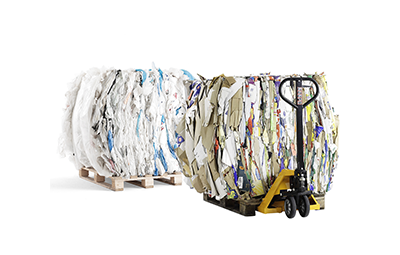

Bale strapping with polyester tape.
What is the maximum bale weight for V Press 825?The maximum bale weight is 280 kgs per bale.
Is the operations of the baler user friendly?Yes HSM balers are safe & designed to be operated with minimal effort. Easy to use and very high safety standards. We provide operator training at the time of machine installation on customer request.
How can we off load the V Press 825?V Press 825 can be off loaded using Forklift with 3 Ton Capacity.
