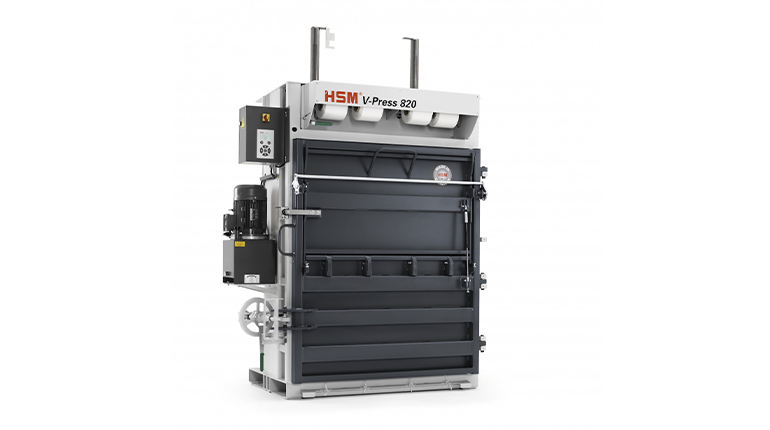

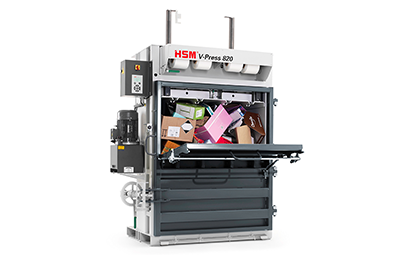

The HSM V-Press 820 is the perfect mid-size baler for hypermarkets and supermarkets in the UAE. Thanks to its powerful motor, ergonomic design, and sophisticated, innovative technology, this baler seamlessly combines all the advantages of a high-performance baling press into one machine. The vertical press waste baler can press packaging material such as plastic as well as cardboard. The crossed cylinders design facilitates easy installation and the innovative and intuitive technology used in the machine makes it user-friendly.
The HSM V-Press 820 is equipped with a state-of-the-art microprocessor controller and a membrane keypad with an LED display, ensuring intuitive operation and precise control. Special retaining claws optimize the compression of the pressing material, significantly increasing both the loading volume and bale output. Installation is quick and easy, thanks to its innovative cross-cylinder design. The baler offers high process reliability through the HSM TCS (Torsion Control System), which monitors press ram movement. The configuration includes a loading flap with a hand wheel door lock for secure and easy use. Bale strapping is efficiently done with polyester tape, ensuring secure handling and transportation of bales. The bale size and weight are perfectly suited for the needs of hypermarkets and supermarkets.
| Pressing Power | 178 kN |
| Specific Pressing Power | 19,23 N/cm² |
| Driving Power | 4 kW |
| Voltage / Frequency | 400 V / 50 Hz |
| Cycle Time When Idling | 23s |
| Machine Dimensions (Width x Depth x Height) | 1700 mm x 1075 mm x 2499 mm |
| Loading Aperture Dimensions (Width x Height) | 1195 mm x 558 mm |

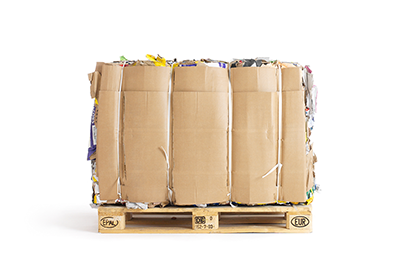

| Bale Dimensions (Length x Width x Height) | 1200 mm x 780 mm x 1000 mm |
| Hourly Output in Balers | 2-5 bales approx. |
| Bale Weight | 250 kg approx. |
| Loading Height | 928 mm |
| Machine Weight | 1300 kg |
| Method of Strapping | Vertical |
| Number of Strappings | 4 |

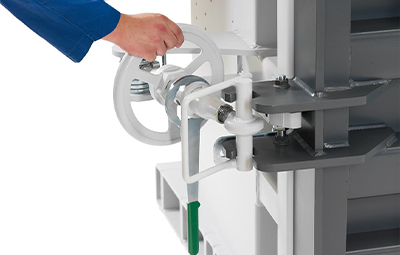

Easy to handle thanks to counter-rotating thread for quick opening and closing

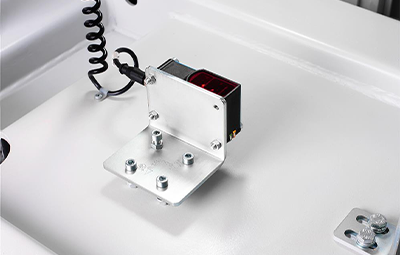

Torsion Control System (TCS) for monitoring press ram movement

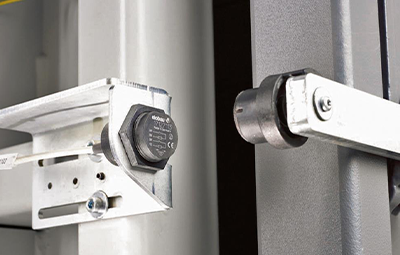

Automatic start of the pressing process after closing the door

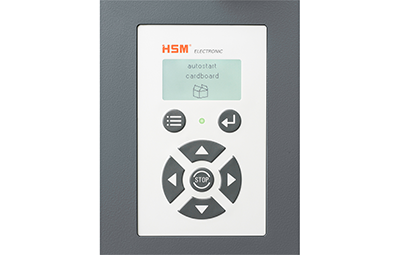

Convenient membrane keypad with text display, which shows the status of the machine

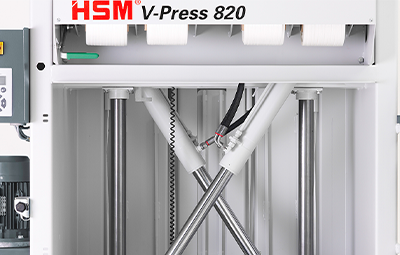

Quick and easy installation due to crossed cylinders

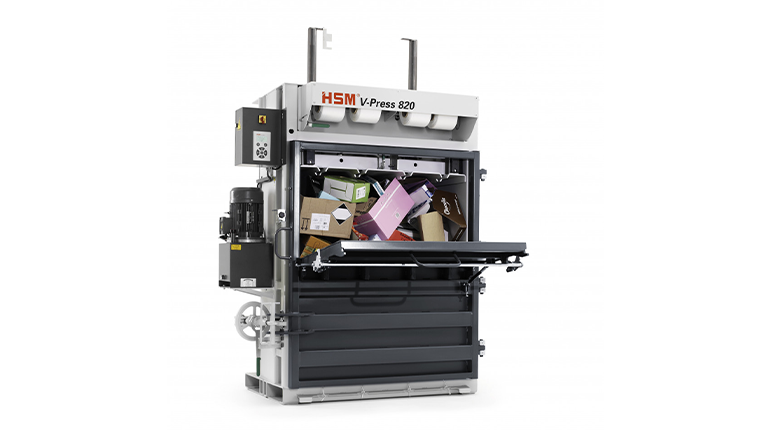

To fill the press, the upper half of the doors is folded down
Bale strapping with polyester tape
What is the maximum bale weight for V-Press 820? The maximum bale weight is 250 Kg approx. per bale.
Are the operations of the baler user-friendly? Yes, HSM balers are safe & designed to be operated with minimal effort. They are easy to use and have very high safety standards. We can provide operator training at the time of machine installation on your request.
How can we offload V-Press 820?V-Press 820 can be offloaded using a forklift with a 2-ton capacity.
