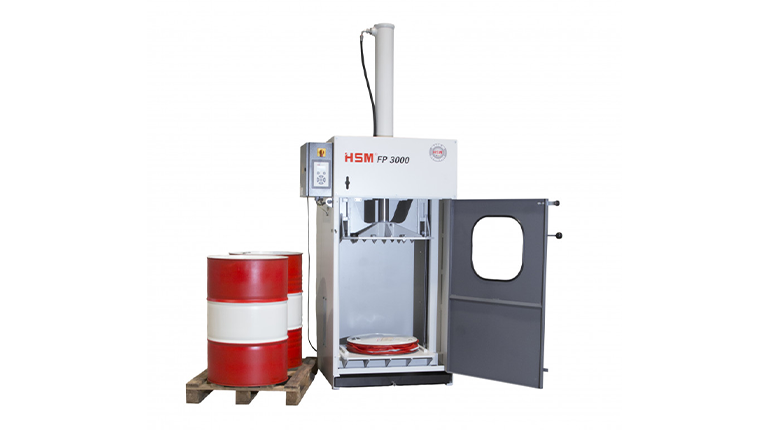

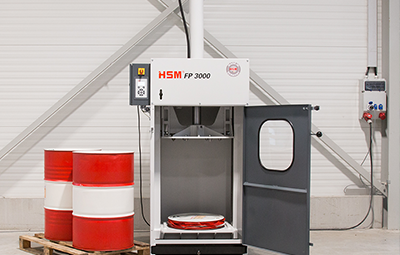

HSM FP 3000 Barrel Press

Popular baler for drum & industrial filters compacting. Excellently suited for pressing light metal and rolled hoop barrels. Automatic return stroke saves time, overheads and personnel costs HSM FP 3000 is ideally suited to the pressing of barrels. Operating the press is easy and very safe, due to its fully enclosed design. The press requires little space and can be installed wherever it is needed. An explosion-proof (EEx) version of the barrel press is also available.

Download library
Waste Balers HSM FP 3000 Barrel Press

Product info

HSM FP 3000 is having Low installation height and small footprint. The Press ram with spikes for opening barrels and sump tray for residual liquid. It is fully enclosed design with viewing window ensures high security and prevents the built-up of dirt. It has Keypad with LED display ensures operational safety. The Automatic return saves time, as well as operating and personnel costs. Very Low maintenance, long-lasting electro-hydraulics. The Explosion-proof design in compliance with EX II Gcb IIBT3 available.

Technical Specifications

Pressing power 270 kN
Specific pressing power 60 N/cm²
Driving power 7,5 kW
Voltage / Frequency 400 V / 50 Hz
Cycle time when idling 33 s
Loading Height 1092 mm
Loading aperture width x height 618 x 1092 mm
Width x Depth x Height 1168 x 960 x 2892 mm
Weight 970 Kg
Industry type Retail, Recycling & Disposal, Logistics & Distribution, Industry & Manufacturing
Press material Clothing, Polystyrene, Big Bags, Cardboard, Mixed paper, Plastic film, Punch waste/residue
Your personal Consultant

Get expert advise to buy the right product

How to buy get a quote chat with us

Accessories and Consumables

Strapping Tape WG55
Pre Looped Wire

Product FAQ’s

What is the compression ratio of FP 3000?

The Volume reduction ratio is 9:1, depending on material.

What is the capacity of the FP 3000?

FP 3000 can compress up to 50 barrels (200 Liter capacity) per hour.

Do HSM have any other version of FP 3000?

An explosion-proof (EEx) version of the barrel press is also available.
