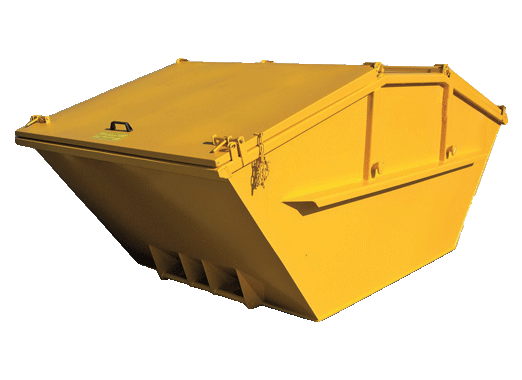

7cbm is standard size closed waste container, very useful for fit out waste, green waste, commercial waste and industrial applications. Steel lids are designed light weight, meant for heavy duty. Construction wise bottom plate is 6 mm and side wall plate is 4mm. Triple-tipping device on both sides makes it very easy for handling from any side using chain loader trucks. It has enough branding friendly space to describe waste disposal instructions and caution messages. Skips are primered and then painted in RAL color of your choice. All the closed skips are manufactured according to DIN 30720 or local standard.
Skip is Symmetric in design with special spring-loaded mechanism lids on each side to allows optimized filling. A standard size skip most suited for waste for disposal if the application is such that user wants to limit the waste volume not to exceed certain level. For high density industrial waste 7cbm is a best solution. It does not require for the user to lift the lid with muscular effort, just a release lock mechanism will allow pushing the lid in a smooth way upwards for waste discharge and to bring back the lid for closing a chain is fixed at lid that help user to pull the lid down and lock the lid effortlessly.
|Volume||7 cbm (inside net volume)|
|Standard||In accordance to DIN 30720, or to local standards upon special request|
|Dimensions||Length 3740mm; Width 1425mm; Height 1500mm; Weight 800 kg|
|Material||Bottom plate: 6mm; Side Plates: 4mm, Steel grade ST37; entirely welded inside and outside|
|Lifting Systems||Chain Lifting System; 2 heavy-duty bolts on each side, Triple tipping device integrated on both sides at bottom|
|Frame||Symetrical shape with low feeding on front side; Corners double welded; Top frame beams cold rolled profile U-channels|
|Lids||2 spring balanced steel lids, with locking device on both sides. Opening handle.|
|Coating and Finishing||Available in many standard colors; primered and coated with Epoxy-Paint, approx. 150 Microns|
|Extra Features||Set of net-hooks for tarpaulin welded all around; Conical shape for stacking of up to 4 empty pieces, Safety reflection stickers|
|Options (chargeable)||Additional REL bolts for occasional lifting by REL compactor trucks; additional side bolts, fork lift pockets, crane hooks, Plastic lids only available as an option; RFID chips, various branding and sticker options|
|Warranty||One year against manufacturing defects|
The lid has a grip handle useful and ergonomic for safe handling
The release lock is required for releasing the lid for opening
Thoroughly welded in highest quality for enhanced life term and performance of the skip.
Forklift pocket allows the movement of the skip using forklift or telehandler.
Additional feature if required useful for skips for moving on to the high levels using crane.
Heavy duty construction, allows safe handling of waste skip on trucks.
No the lids of the skips are lighter in weight and built strong. There is no human effort to lift the lid as it has release locks and the lid opens slowly and easily due to spring mechanism.
Yes, it can be offered with customized apertures upon special requests.
Customized skips can be offered upon request, however full information is required as material to be handled, weight, volume etc. required to offer customized skips. Please send us request and we can reply.
The POWER BEAR team will advice you about the most practical delivery option to your address.
Can deliver up to 2 pcs
can deliver up to 4 pcs
Contact us for project specific SKIP design
This skip is welded from the inside and outside and has a bottom plate of 6 mm and a side wall plate of 4 mm. This skip is unique because of the top frame beams and cold rolled profile
