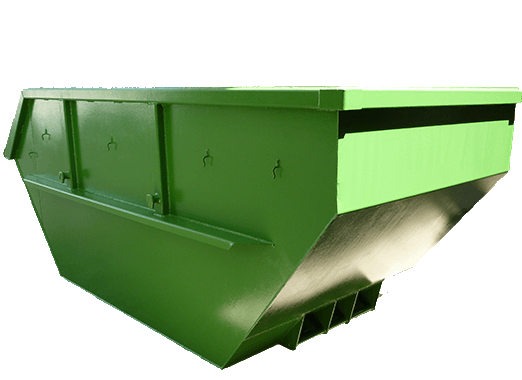

5.5 cbm is an entry level small capacity skip used for organic waste disposal. Has a particularly good low footprint as well. Compliant to DIN standard Chain or Skip loader trucks. It can be operated by refuse garbage compactor vehicles as well subject to having a suitable lifter on the truck. Also useful for industrial, green waste & fit out wastes.
This skip is welded from the inside and outside and has a bottom plate of 6 mm and a side wall plate of 4 mm. Construction is unique because of the top frame beams and cold rolled profile, U-Channel with double welded edges and a triple-tipping device on both sides. Set of net hooks are all welded around the skip, primed & coated in RAL color of your choice. Available on request with varying thickness of side wall & bottom plate for special applications.
Volume | 7 cbm (inside net volume) |
Standard | In accordance to DIN 30720, or to local standards upon special request |
Dimensions | Length 3500mm; Width 1750mm; Height 1500mm; Weight 750 kg |
Material | Bottom plate: 6mm; Side Plates: 4mm, Steel grade ST37; entirely welded inside and outside |
Lifting Systems | Chain Lifting System; 2 heavy-duty bolts on each side, Triple tipping device integrated on both sides at bottom |
Frame | Asymetrical shape with low feeding on front side; Corners double welded; Top frame beams cold rolled profile U-channels |
Coating and Finishing | Available in many standard colors; primered and coated with Epoxy-Paint, approx. 150 Microns |
Extra Features | Set of net-hooks for tarpaulin welded all around; Conical shape for stacking of up to 4 empty pieces, Safety reflection stickers |
Options (chargeable) | Additional REL bolts for occasional lifting by REL compactor trucks; additional side bolts, fork lift pockets, crane hooks; Supplement for construction waste: bottom plate 8 mm, side wall plates 5 mm; Anti corrrosive GRP lining inside; RFID chips, various branding and sticker options |
Warranty | One year against manufacturing defects |
Strong Top Frame prevents structural damage in case of undue stress during operations.
Net hooks is added advantage that allows using tarpaulin cover for covering and securing the contents within the open top skip.

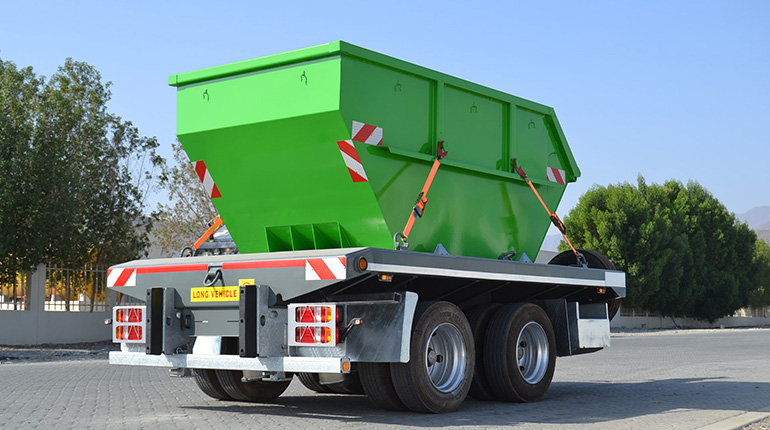

Very useful for securing chain loader skip to hook for safe emptying at landfill or material recovery facility.
Thoroughly welded in highest quality for enhanced life term and performance of the skip.
Yes, we can so long as the quantity is acceptable and matches MOQ for a new design/capacity.
Branding can be done as per customer request in one color, please share with us soft copy of branding artwork to confirm.
We can deliver anywhere in MENA, for specific location requirements, please share full details of the project.
The POWER BEAR team will advice you about the most practical delivery option to your address.
Can deliver up to 4 pcs
can deliver up to 9 pcs
Contact us for EXPORT FRIENDLY SKIP design.
This skip is welded from the inside and outside and has a bottom plate of 6 mm and a side wall plate of 4 mm. This skip is unique because of the top frame beams and cold rolled profile
