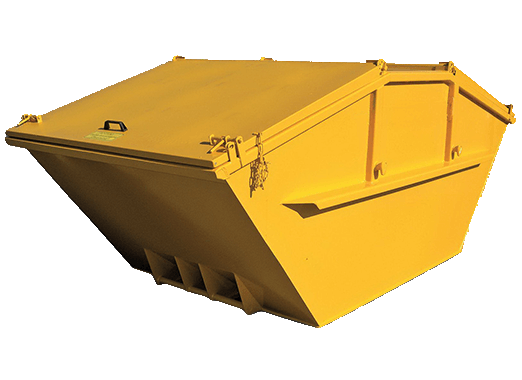

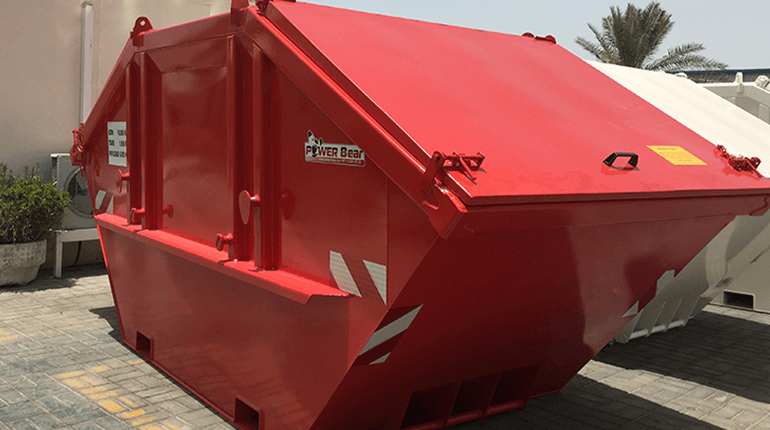

10cbm is a mid level closed skip, very useful for bulky waste, commercial waste and industrial applications. Steel lids are designed light weight and are meant for heavy duty use. Construction wise bottom plate is 6 mm and side wall plate is 4 mm. Triple-tipping device on both sides makes it very easy for handling from any side using chain loader trucks. It has enough branding friendly space to describe waste disposal instructions and caution messages. Skips are primered and then painted in RAL color of your choice. All the closed skips are manufactured according to DIN 30720 or local standard.
Symmetric in design with spring loaded lids on each side allows optimized filling of skip. 10 cbm skip is a mid-level size skip most suited for bulky and low-density waste, it can also be used for process waste in industrial application. For low density industrial waste 10 cbm is a best solution. It does not require end user to lift the lid with muscular effort, it has a lock release mechanism that pushes the lid in a smooth way upwards for waste discharge and to bring back the lid for closing, a chain is fixed together that helps user to pull the lid down and lock the lid effortlessly. Available on request with varying thickness of side wall and bottom plate for special applications. For recyclables collection skips can be supplied with customized apertures for e.g., paper only, cans only, Cartons only, bottles only etc. On request we can offer special waste handling design and sizes.
Volume | 10 cbm (inside net volume) |
Standard | In accordance to DIN 30720, or to local standards upon special request |
Dimensions | Length 3980mm; Width 1275mm; Height 2000mm; |
Material | Bottom plate: 6mm; Side Plates: 4mm, Steel grade ST37; entirely welded inside and outside |
Lifting Systems | Chain Lifting System; 2 heavy-duty bolts on each side, Triple tipping device integrated on both sides at bottom |
Frame | Symetrical shape with low feeding on front side; Corners double welded; Top frame beams cold rolled profile U-channels |
Lids | 2 spring balanced steel lids, with locking device on both sides. Opening handle. |
Coating and Finishing | Available in many standard colors; primered and coated with Epoxy-Paint, approx. 150 Microns |
Extra Features | Set of net-hooks for tarpaulin welded all around; Conical shape for stacking of up to 4 empty pieces, Safety reflection stickers |
Options (chargeable) | Additional REL bolts for occasional lifting by REL compactor trucks; additional side bolts, fork lift pockets, crane hooks, Plastic lids only available as an option; |
Warranty | One year against manufacturing defects |
The lid has a grip handle useful and ergonomic for safe handling.
The release lock is required for releasing the lid for opening.
Thoroughly welded in highest quality for enhanced life term and performance of the skip.
Forklift pocket allows the movement of the skip using forklift or telehandler.
Additional feature if required useful for skips for moving on to the high levels using crane.
Heavy duty construction, allows safe handling of skip on trucks.
No the lids of the skips are lighter in weight and built strong. There is no human effort to lift the lid as it has released locks and the lid opens slowly and easily due to spring mechanism.
Yes, it can be offered with customized apertures upon special requirements.
Customized skips can be offered upon request, however full information is required as material to be handled, weight, volume etc. required to offer customized skips. Please send us request and we can reply.
The POWER BEAR team will advice you about the most practical delivery option to your address.
Can deliver up to 4 pcs
can deliver up to 9 pcs
Contact us for EXPORT FRIENDLY SKIP design.
This skip is welded from the inside and outside and has a bottom plate of 6 mm and a side wall plate of 4 mm. This skip is unique because of the top frame beams and cold rolled profile
