StyroPress® is a briquetting press for the volume reduction of loose EPS (air pop®). The innovative press concept of this briquette press with integrated shredder compacts briquettes of up to 700 kg/m3. This briquette-density ensures full capacity of truck and sea containers with 24 t. For comparison: Without compaction with a briquetter only about 800kg of loose material could be transported on a truck or in a container! This way you save considerable costs for transportation and logistics. In addition the briquettes can be sold profitably!
Due to the large feeding opening (ca. 120 x 120cm) of the briquetting press the material pieces directly reach the six shredder shafts and get crushed. With augers the crushed material is transported via a buffer into the press chamber. With a pressing force of 250kN the material is compacted into briquettes. 100% Transport Capacity. Continuous operation. Small machinery footprint. High revenues for briquettes. No operating staff necessary. Non-stop operation 24/7 possible. Insertion of big shapes and quantities. Cost savings in logistics and staff.
EPS parts are compated into briquettes - thereby volume is reduced by up to 97%.

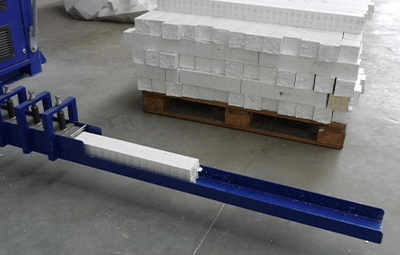

Compacted EPS briquettes are pushed out one after another via the briquette chute.
EPS briquettes packed on a palette. The sale of EPS briquettes reaches very high revenues.
Six shredders crush the EPS parts into small pieces.

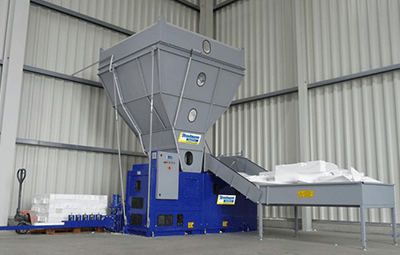

The silo collects big amounts of EPS parts which are compacted non-stop into briquettes fully automatically
Where the Shredders are used frequently?Archives, Offices & Department dealing with confidential information’s, Financial Institutions.
What is the Security Level for the Shredder?Security level (DIN 66399 / ISO / IEC 21964): E-3 | F-1 | O-3 | P-4 | T-4
This skip is welded from the inside and outside and has a bottom plate of 6 mm and a side wall plate of 4 mm. This skip is unique because of the top frame beams and cold rolled profile
