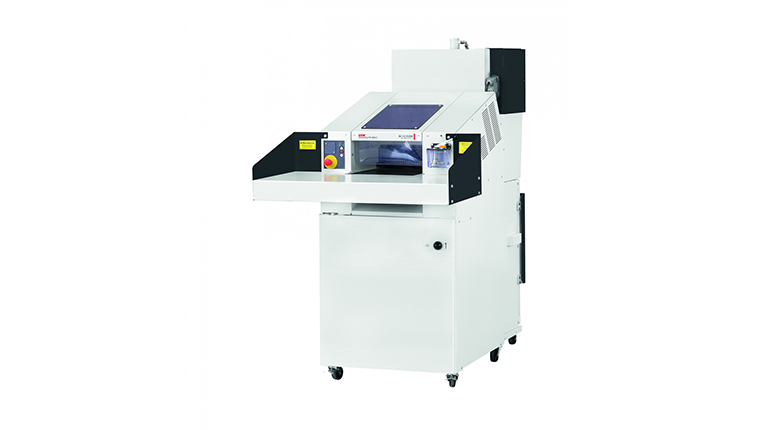

HSM Powerline SP 4040 V

The HSM Powerline SP 4040 V is a compact and powerful combination of the FA 400.2 conveyor belt document shredder and a vertical baling press. Designed for the efficient and safe destruction of large quantities of documents, this baling and shredding solution efficiently compresses shredded material into bales of up to 35 kg. Ideal for high-volume environments, the SP 5080 V ensures reliable and efficient document disposal while optimizing space and operational efficiency, making it one of the best in both document and paper shredders and baling machines. It can shred materials such as paper, staples, paper clips, debit/credit/loyalty cards, CD/DVDs, floppy disks, and USBs (data media can only be shredded by the machine, not baled). The machine is available with strip cut as well as particle cut shredding types—you can choose the best shredder-baler system according to your requirements.

Applications:
  • Shredder-baler combination
  • Suitable for shredding office files
  • Suitable for shredding credit/debit/loyalty cards
  • Suitable for shredding confidential documents
SP 4040 V Vertical Bailing and Recycling Shredder

Product Info

The HSM Powerline SP 4040 V features cutting rollers made of hardened solid steel, providing durability and long-lasting performance. The non-slip conveyor belt ensures convenient and efficient material feeding, while the powerful motor with a chain drive makes it one of the top continuous-operation shredders in the range. Automatic reverse functionality eliminates paper jams, ensuring smooth and uninterrupted shredding.

A light barrier triggers the automatic start of the compression process, enhancing operational efficiency. The shredded material is compressed into compact bales, which can be cleanly disposed of in a box or waste bag. The practical removal trolley simplifies the easy removal of bales, adding to user convenience.

The manual oiler maintains consistently high cutting capacity of the industrial shredder unit, while the emergency off switch ensures user safety. The functional operator control panel with an LED indicator provides clear and intuitive operation. The SP 5080 document shredder with baling press is mobile on castors, complete with a parking brake, allowing for easy maneuverability and secure positioning within your facility. The machine is available with strip cut as well as particle cut shredding types with particle dimensions: 3.9 x 40 mm particle cut, 5.8 mm strip cut, and 5.8 x 50 mm.

Technical Specifications

Scope of Application Archives, central offices, etc.
Type of Cut Particle cut, Strip Cut (for Powerline SP 4040 V - 5.8 mm)
Strip Cut Length 5.8 mm (for Powerline SP 4040 V - 5.8 mm)
Particle Dimensions (Length x Width) 5.8 mm x 50 mm, 3.9 mm x 40 mm
Security Level (DIN 66399 / ISO / IEC 21964) E-3 | F-1 | O-3 | P-4 | T-4 for Powerline SP 4040 V - 3.9 x 40 mm, E-2 | O-2 | P-2 | T-2 for Powerline SP 4040 V - 5.8 mm, E-2 | O-2 | P-3 | T-3 for Powerline SP 4040 V - 5.8 x 50 mm
Cutting Performance in Sheets 80g / m² 104 for Powerline SP 4040 V - 5.8 mm, 96 for Powerline SP 4040 V - 5.8 x 50, 80 for Powerline SP 4040 V - 3.9 x 40
Pressing Force 44 kN
Drive Power 4 kW (document shredder) & 2.2 kW (baling press)
Voltage Frequency 400 V / 50 Hz (also available in KSA specs 380 V / 60 Hz upon request)
Input Width 428 mm
Bale Weight Up to 35 Kg
Bale Size (Length x Width x Height) 600 mm x 500 mm x 400 mm
Dimensions of Machine (Width x Depth x Height) 1090 mm x 2030 mm x 1970 mm
Machine Weight 737 kg
Disclaimer: The technical specifications outlined herein are subject to change based on ongoing product enhancements and specific customer requirements. For the most accurate and up-to-date specifications, please get in touch with us.
Your personal Consultant

Get Expert Advice To Buy the Right Product

How to buy get a quote chat with us

Accessories and Consumables

Reusable Bag SP 4040 V
Collection Box SP 4040 V
Dust Extractor
Cutting Block Special Oil
Cuttings Collection Trolley

Product FAQs

What are the dimensions of the bales produced by the HSM Powerline SP 4040 V?

Dimensions of bales produced by HSM Powerline SP 4040 V is 600 mm x 500 mm x 400 mm.

Can the HSM Powerline SP 4040 V be easily moved within a facility?

Yes, the HSM Powerline SP 4040 V is mobile and features smooth-running, stable castors with parking brakes.

What is the role of the manual oiler in the HSM Powerline SP 4040 V?

The manual oiler maintains consistently high cutting performance and quality by ensuring that the shredder’s cutting rollers remain well-lubricated, which helps prevent wear and tear and ensures smooth operation.

How much shredded material can the baling press handle at once?

The vertical baling press of the HSM Powerline SP 4040 V can handle and compress shredded material into bales of up to 35 kg.

How does the HSM Powerline SP 4040 V handle paper jams?

The HSM Powerline SP 4040 V shredder and baler combination features automatic reverse functionality that helps to eliminate paper jams.

What are the shredding options available with the HSM Powerline SP 4040 V?

The HSM Powerline SP 4040 V offers shredding options in both strip cut and particle cut types. Particle dimensions available are 3.9 x 40 mm, 5.8 x 50 mm, and strip cut with a length of 5.8 mm.
