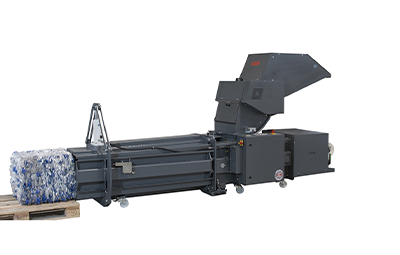

PET CP 4988 crusher-press is one of the effective system for PET recycling reduces the volume of empty PET bottles by up to 90% in one operation and creates compact raw material bales from them. This saves you valuable space, time and money when storing and transporting empty PET bottles that are to be recycled. Well-engineered technology of the HSM crusher press combinations. An additional advantage of crushing is the reliable cancellation of PET returnable bottles and cans.

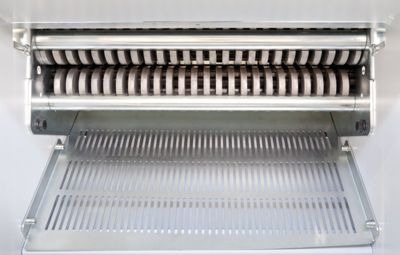

The empty PET bottles are loaded manually via a large filling chute. Automatic filling is technically possible. The special roller system perforates and squeezes plastic bottles. In this way, the side walls catch themselves and the volume reduction is fully retained. An additional advantage of crushing is the reliable cancellation of PET returnable bottles and cans. In the downstream PET press with a pressing force of 11 tons, the crushed bottles are compressed into bales of raw material with a weight of up to 100 kg. The bales have a cross section of 500 x 500 mm and are up to 1200 mm long.
| Pressing force: | 100 KN |
| Specific pressing force: | 44 N / cm² |
| Drive power: | 6.2 kW |
| Voltage frequency: | 400 V / 50 Hz |
| Working width: | 490 mm |
| Filling level: | 1510 mm |
| Throughput (1l bottle / h): | 4000 |
| Width of the filling opening x length of the filling opening: | 413 x 426 mm |
| Application area: | Food & Beverage, Industry & Manufacturing, Retail |
| Bale width x bale height x bale length: | 500 x 500 x 600-1200 mm |
| Bale weight (up to): | 100 kg |
| Type of loading: | Manually |
| Length x width x height: | 3826 x 990 x 1800 mm |
| Weight: | 1150 kg |
The high-quality materials and the proven quality "Made in Germany" guarantee safety and durability.
90% of the original volume into compact raw material bales - including deposit devaluation
Manual and automatic filling possible.
the cutting unit can also be used in combination with deposit return machines.
Throughput up to 4000 PET bottles (1 liter) per hour
