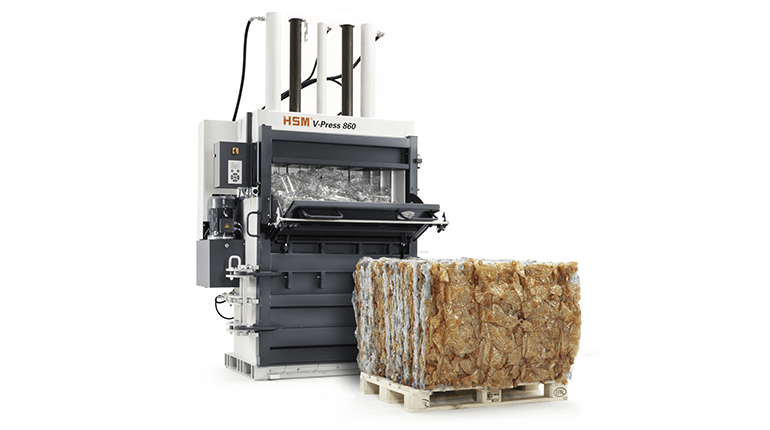

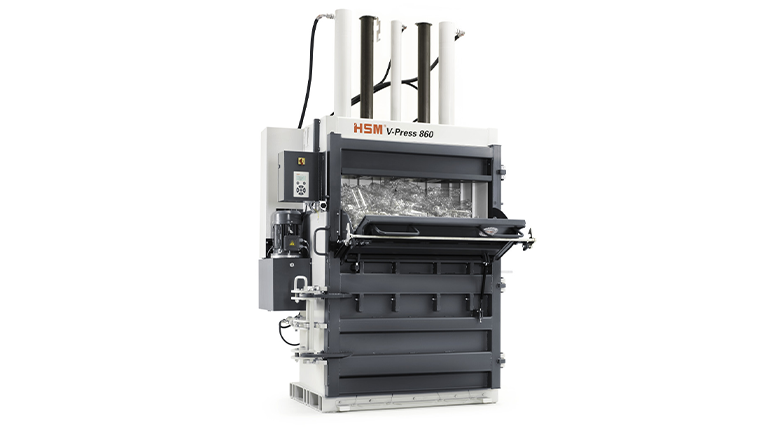

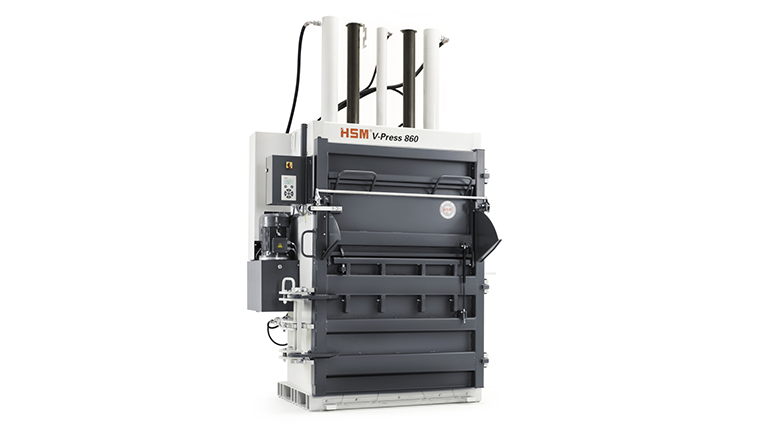

The vertical baling press HSM V-Press 860 P is specially designed for the compression of opened or perforated PET/UBC bottles. Double the number of retaining claws optimize the compression of the pressed material and reduce the number of filling processes.
860 PET has particularly robust mechanical belt or chain ejector. Reinforced press box and hydraulic door lock - easy opening and closing, no manual effort required. Rapid traverse technology saves time and money. Comfortable operation through a membrane keyboard with a graphic text display that shows the current status of the machine.
Pressing force: | 434 kN |
Specific pressing force: | 46.37 N / cm² |
Drive power: | 4 kW |
Voltage frequency: | 400 V / 50 Hz |
Cycle time in idle: | 25 s |
Press capacity idle (theor.): | 12 m³ / h |
Filling level: | 1115 mm |
Width x Height of the filling opening: | 1195 x 650 mm |
Application area: | Recycling & disposal, retail, logistics & forwarding, food & beverage industry, industry & production, printing & packaging industry |
Bale width x bale height x bale length: | 1200 x 780 x 1200 mm |
Bale weight (up to): | 230 kg |
Type of loading: | Manually |
Length x width x height: | 1870 x 1294 x 2985 mm |
Weight: | 2290 kg |

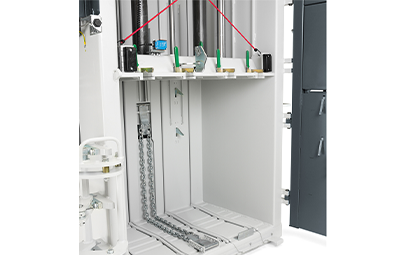

Robust mechanical belt or chain ejector.

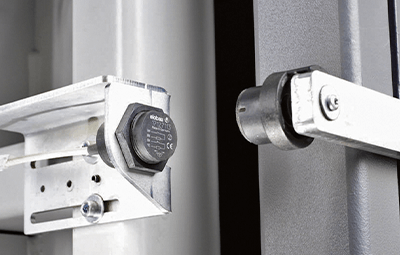

Reinforced press box and hydraulic door lock - easy opening and closing, no manual effort required.

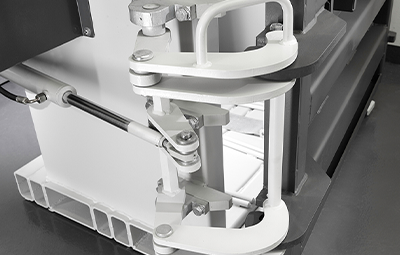

Double the number of retaining claws optimize the compression of the pressed material and reduce the number of filling processes.
Automatic start of the pressing process after closing the door.

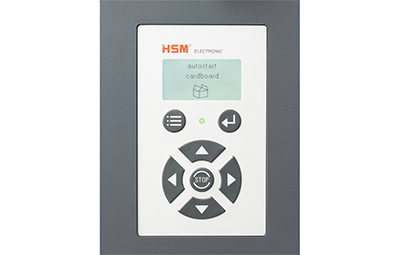

Comfortable operation through a membrane keyboard with a graphic text display that shows the current status of the machine
