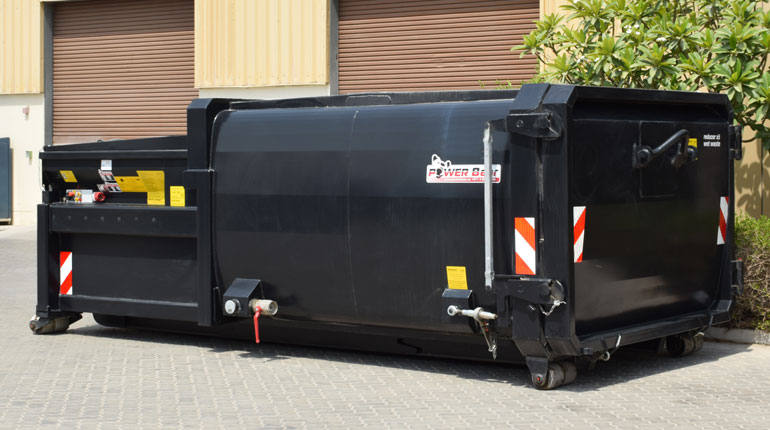

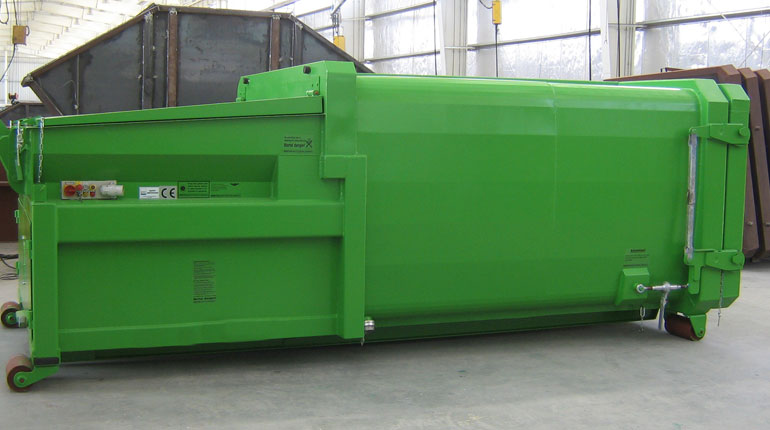

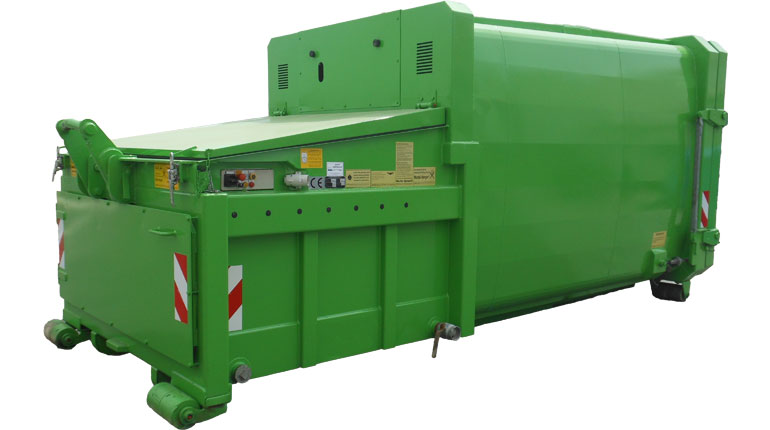

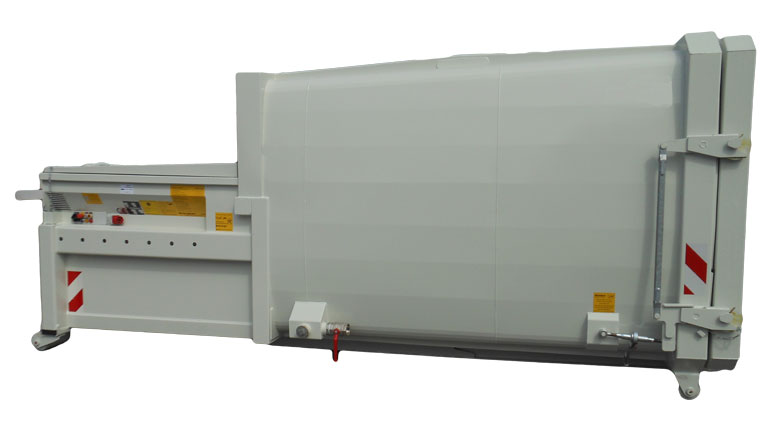

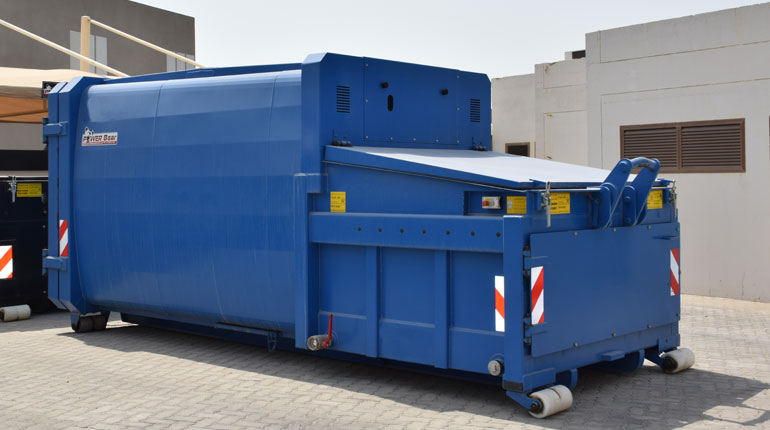

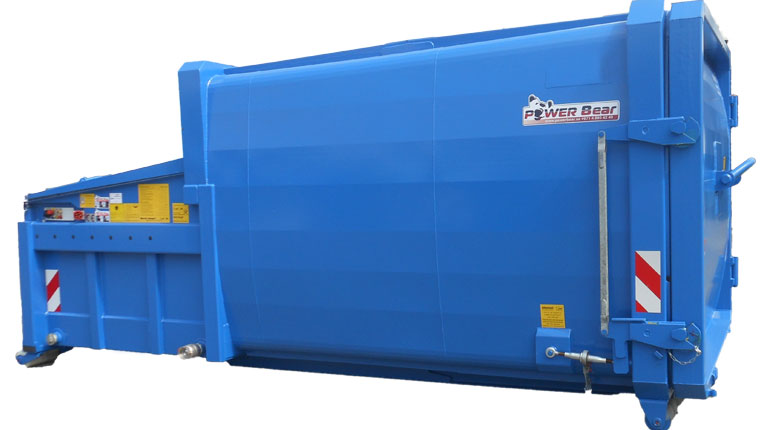

Portable compactor with standard X5 hopper for hook loader systems are produced according to DIN 30 730 or local standard. These are high performance HORIZONTAL RAM self-contained compactors. It has a smooth line construction in conical shape for easy emptying of compactor at landfill. Also available with an option of sludge tank to empty the sticky liquid waste either at garbage room/site or at the landfill. Available with integrated bin lifter or with detachable mobile bin lifter as special request. Customer can choose suiting standard RAL color choice.
It has safe filling options which avoids accidents. Safety tailgate locking device with threaded ratchet (easy opening under pressure). Cone-shaped funnel mounted with protected controls for a longer service life. Oil sight glass checkable from outside. Oil drain plug with tap moved to the outside. Liquid proof up to 250 mm. Lid installed front sides. Pick-up system in the rear with 2 rollers front sides. Pick up system fold down and hinged at front side. 80 % fill level signal.
|Fuse protecation||16 A delay|
|Power supply||400v / 50Hz|
|Hopper hight||1480 mm|
|Upper feed opening||1380 x 2090 mm|
|Lower feed opening||1000 x 1860 mm|
|Ram capacity / stroke||1.25m3|
|Plunger stroke||1280 mm|
|Retraction depth||410 mm|
|Compaction force||28kN / m2|
|Cycle time||48.8 sec.|
|Hydraullc Oil||35 liters|

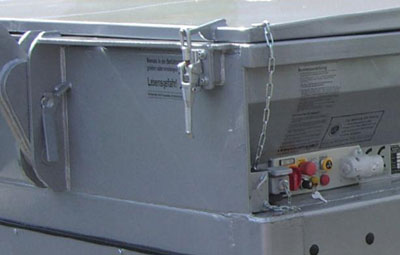

Effective, ergonomic and safe locks

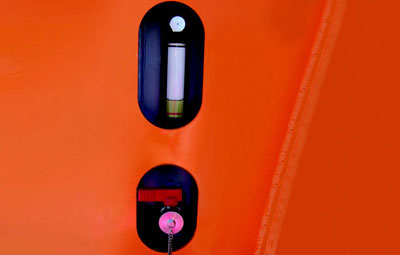

Indicator for oil

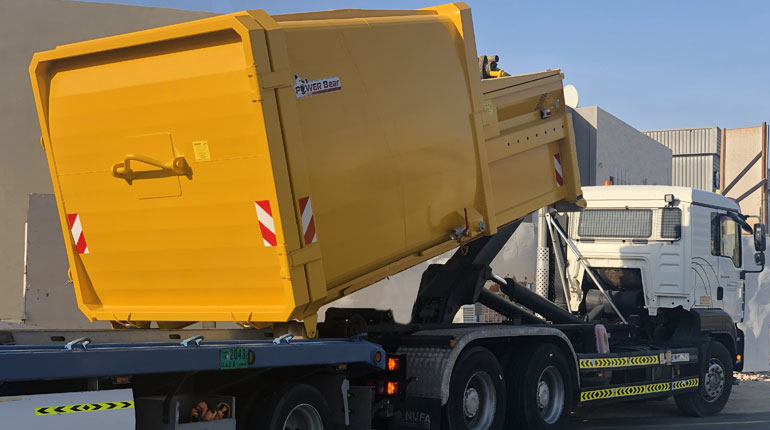

DIN STANDARD Hooks for Hook lift trucks
Hook at backside for X5 type

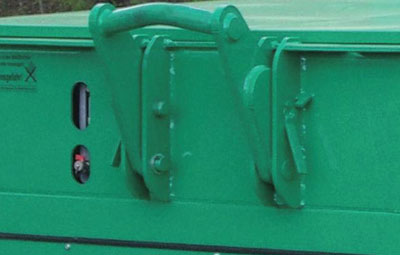

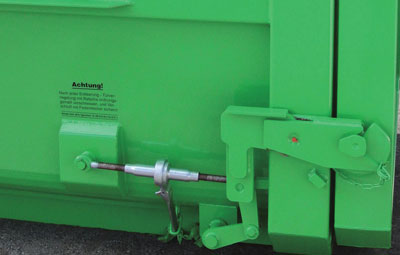

Ratchet for closing rear door

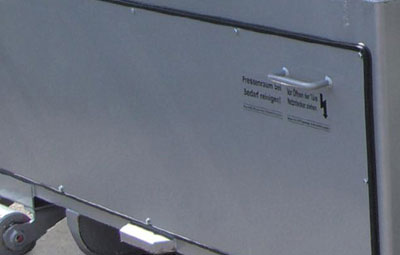

Ease of access for maintenance of Hydraulics.

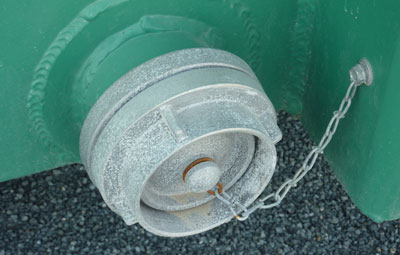

Drain plug for wet waste
Dry waste compactors are compactors to handle recyclables/inorganic waste/ packaging waste etc., whereas wet waste compactors are more suitable for handling organic /food waste/ municipal solid waste in commercial and residential areas.
Before making a decision on what type and capacity of compactor should be employed, please check and verify that truck can access the location where portable compactor is placed, please reach us and we shall offer assistance in selecting right model and capacity
A conservative compaction ratio can be considered as 1:4 however, depending upon type of waste compaction ratio may vary, for example fruit carton has a lower ratio than a watermelon. Yes, compactor needs to be cleaned for better hygiene reasons and to avoid troublesome odours.
