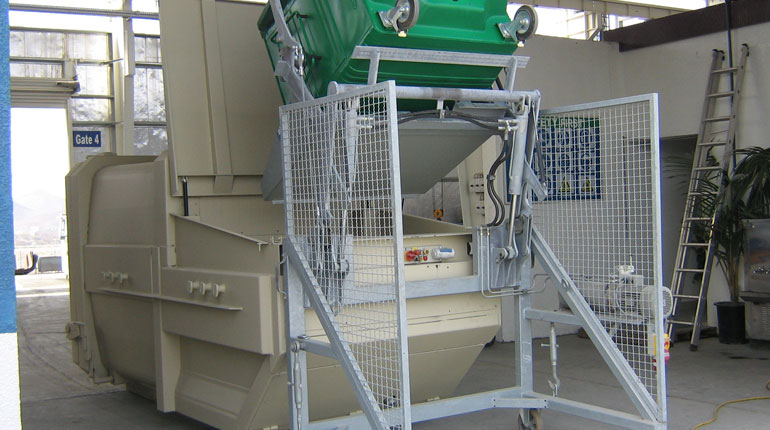

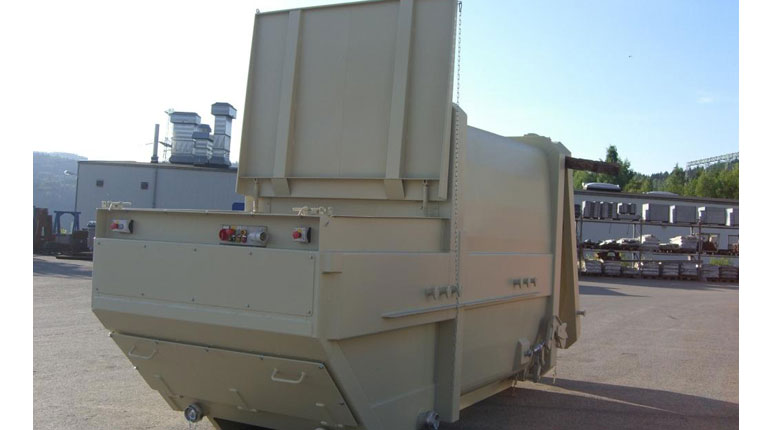

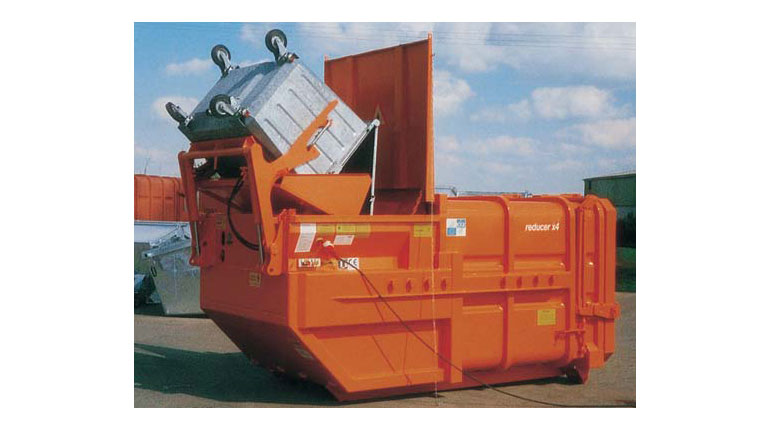

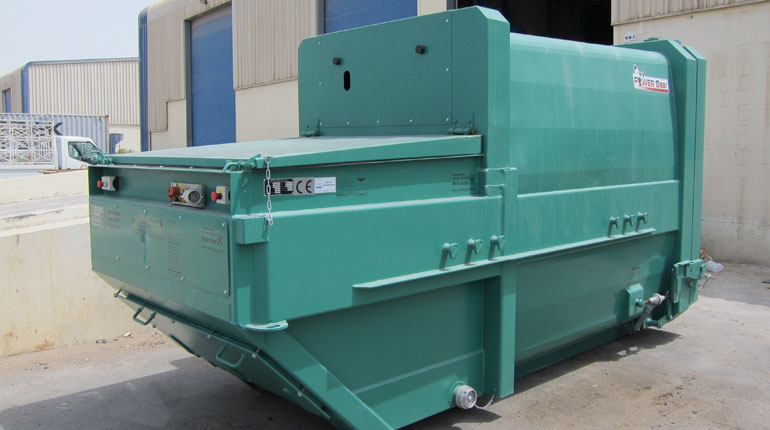

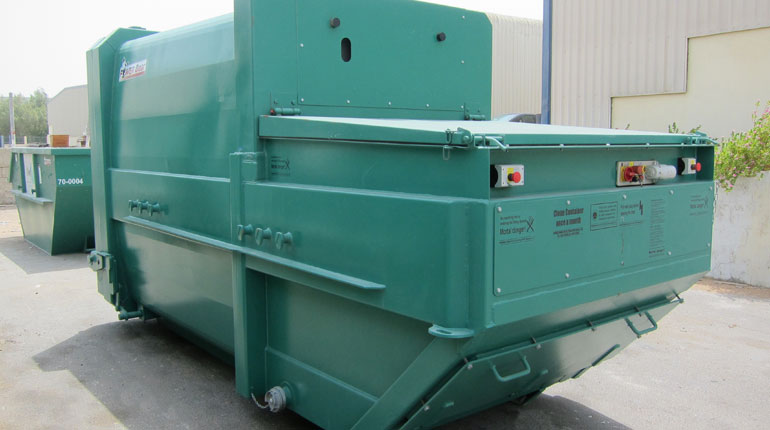

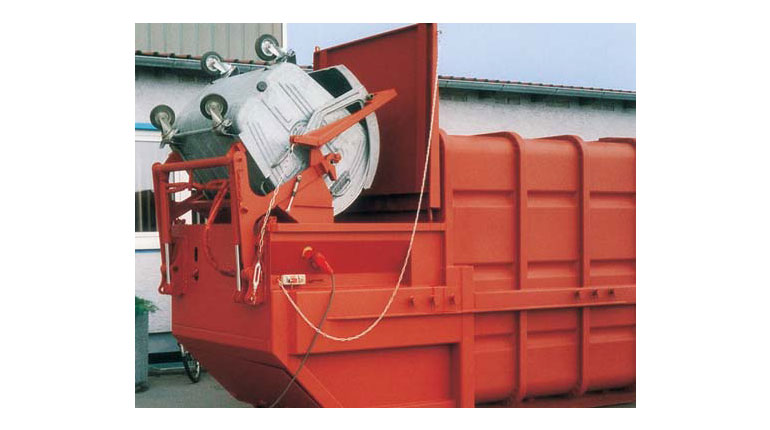

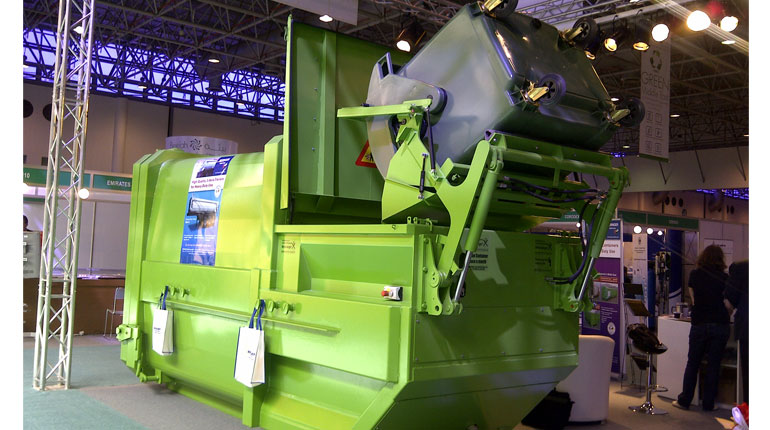

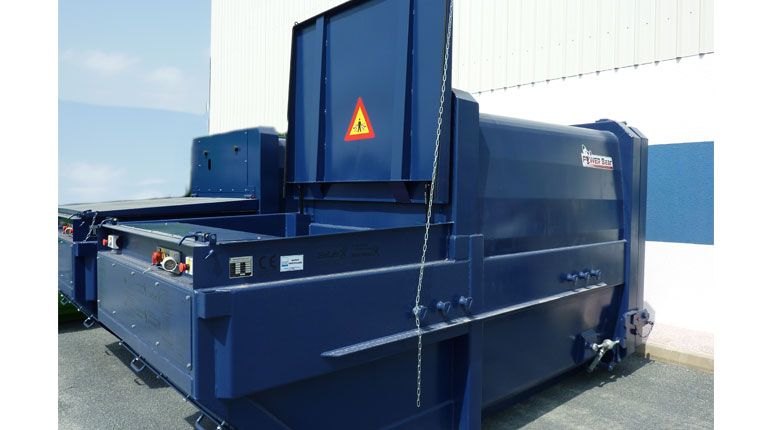

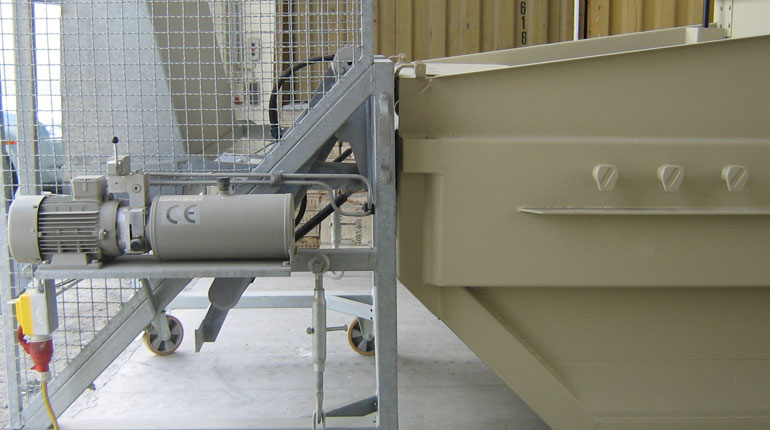

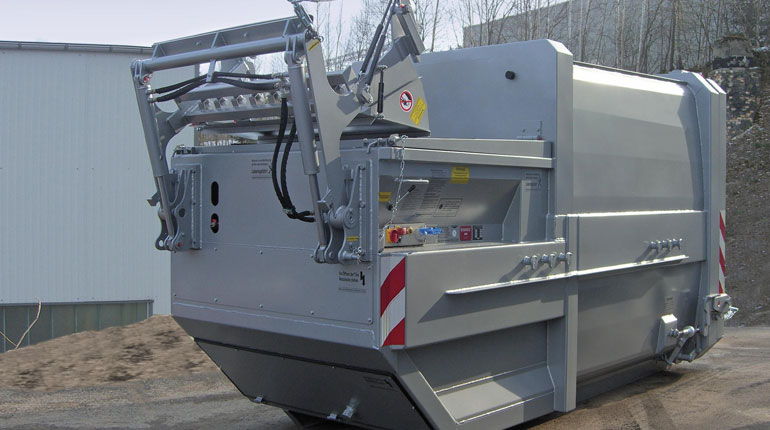

Mobile compactor for chain loader systems is produced according to DIN 30 730 or local standard. These are high performance HORIZONTAL RAM self-contained compactors; it has a smooth line construction in conical shape for easy discharge at landfill. Also available with an option of sludge tank to empty the sticky liquid waste either at garbage room/site or at the landfill. Available with integrated bin lifter or with detachable mobile bin lifter as special request. Customer can choose suiting standard RAL color choice

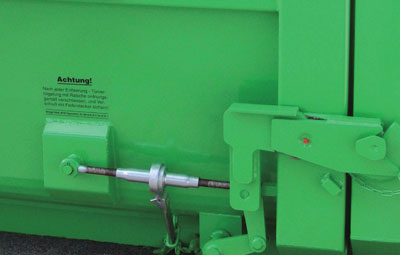

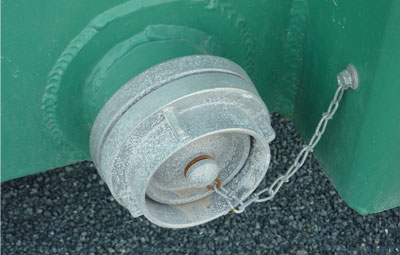

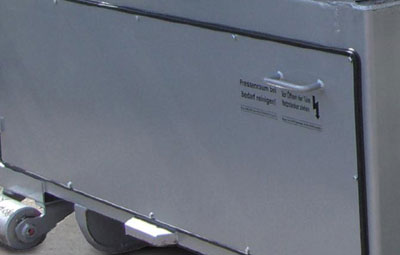

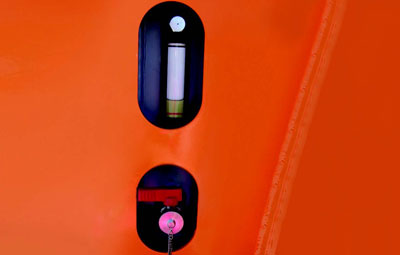

It has safe filling options which avoids accidents. Designed for any truck system. With standard feeder/hopper size. It is standard RAM pressing power. Optional hydraulic bin lift units. Safety tailgate locking device with threaded ratchet (easy opening under pressure) Cone-shaped funnel mounted with protected controls for a longer service life. Trouble-free electrical installation. Oil sight glass checkable from outside. Oil drain plug with tap moved to the outside.
| Actuating power | 5.5kW |
| Fuse protecation | 16 A delay |
| Power supply | 400v / 50Hz |
| Hopper hight | 1310 mm |
| Upper feed opening | 120 x 1500 mm |
| Lower feed opening | 835 x 1360 mm |
| Ram capacity / stroke | 1.25m3 |
| Plunger stroke | 1130 mm |
| Retraction depth | 280 mm |
| Compaction force | 28kN / m2 |
| Cycle time | 33 sec. |
What are dry waste and wet waste compactors? Dry waste compactors are compactors to handle recyclables/inorganic waste/ packaging waste etc., whereas wet waste compactors are more suitable for handling organic /food waste/ municipal solid waste in commercial and residential areas.
How do we know what size of portable compactor shall fulfill our requirements? Before making a decision on what type and capacity of compactor should be employed, please check and verify that truck can access the location where portable compactor is placed, please reach us and we shall offer assistance in selecting right model and capacity
What is the reduction in waste if we use portable compactor and is compactor required to be cleaned regularly?A conservative compaction ratio can be considered as 1:4 however, depending upon type of waste compaction ratio may vary, for example fruit carton has a lower ratio than a watermelon. Yes, compactor needs to be cleaned for better hygiene reasons and to avoid troublesome odours.
