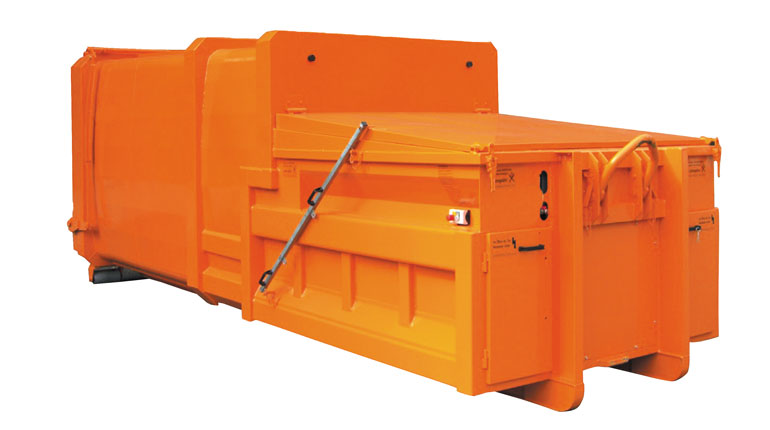

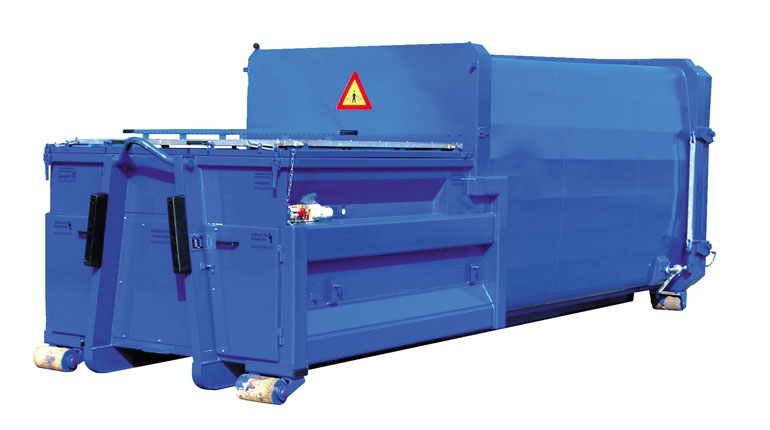

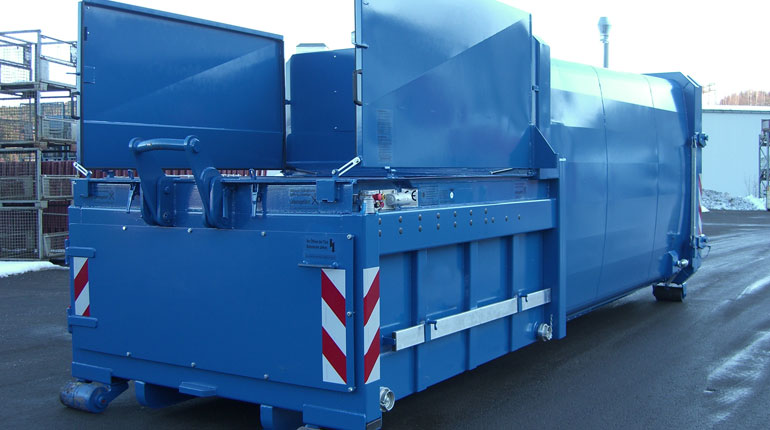

Extra Large hopper compactor for hook loader systems manufactured according to DIN 30 730 or local standard. Immensely helpful for disposal of bulky waste, ideal to dispose compactable oversize packaging waste, large size cartons, fit out waste. These are more popular for exhibition centers, large size catering setups, events etc. Customer can choose suiting standard RAL color choice.

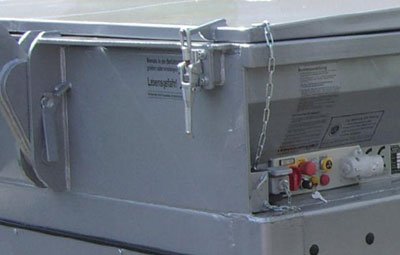

It has safe filling options which avoids accidents. Safety tailgate locking device with threaded ratchet (easy opening under pressure). Cone-shaped funnel mounted with protected controls for a longer service life. Oil sight glass checkable from outside. Oil drain plug with tap moved to the outside. Liquid proof up to 250 mm. Lid installed front sides. Pick-up system in the rear with 2 rollers front sides. Pick up system fold down and hinged at front side. 80 % fill level signal.
| Actuating power | 5.5kW |
| Fuse protecation | 16 A delay |
| Control voltage | 400v / 50Hz |
| Hopper hight | 1480 mm |
| Upper feed opening | 1810 x 2090 mm |
| Lower feed opening | 1480 x 1860 mm |
| Ram capacity / stroke | 1.9 m3 |
| Plunger stroke | 1825 mm |
| Retraction depth | 545 mm |
| Compaction force | 30 kN / m2 |
| Cycle time | 76.1 sec. |
| Hydracullc Oil | 35 Liters |

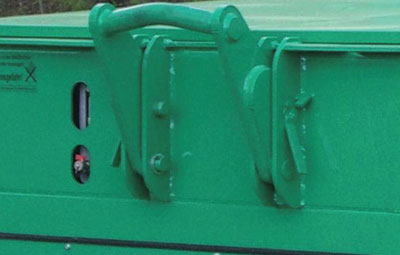

Effective, ergonomic and safe locks

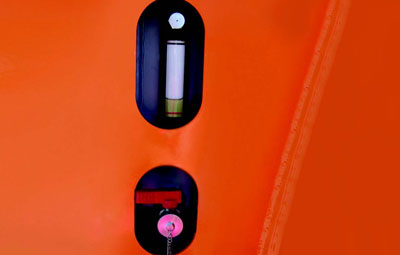

Indicator for oil
DIN STANDARD Hooks for Hook lift trucks
Hook at Rear door

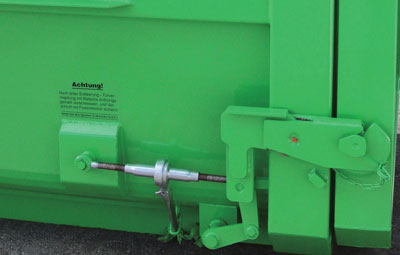

Ratchet for closing rear door
Ease of access for maintenance of Hydraulics.

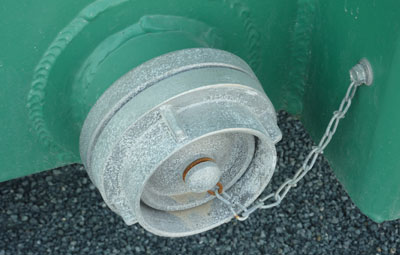

Drain plug for wet waste
What are dry waste and wet waste compactors? Dry waste compactors are compactors to handle recyclables/inorganic waste/ packaging waste etc., whereas wet waste compactors are more suitable for handling organic /food waste/ municipal solid waste in commercial and residential areas.
How do we know what size of portable compactor shall fulfill our requirements? Before making a decision on what type and capacity of compactor should be employed, please check and verify that truck can access the location where portable compactor is placed, please reach us and we shall offer assistance in selecting right model and capacity
What is the reduction in waste if we use portable compactor and is compactor required to be cleaned regularly?A conservative compaction ratio can be considered as 1:4 however, depending upon type of waste compaction ratio may vary, for example fruit carton has a lower ratio than a watermelon. Yes, compactor needs to be cleaned for better hygiene reasons and to avoid troublesome odours.
The POWER Bear team will advice you about the most practical delivery option to your address.
Can deliver up to 2 pcs
can deliver up to 4 pcs
Contact us for project specific design.
This skip is welded from the inside and outside and has a bottom plate of 6 mm and a side wall plate of 4 mm. This skip is unique because of the top frame beams and cold rolled profile
